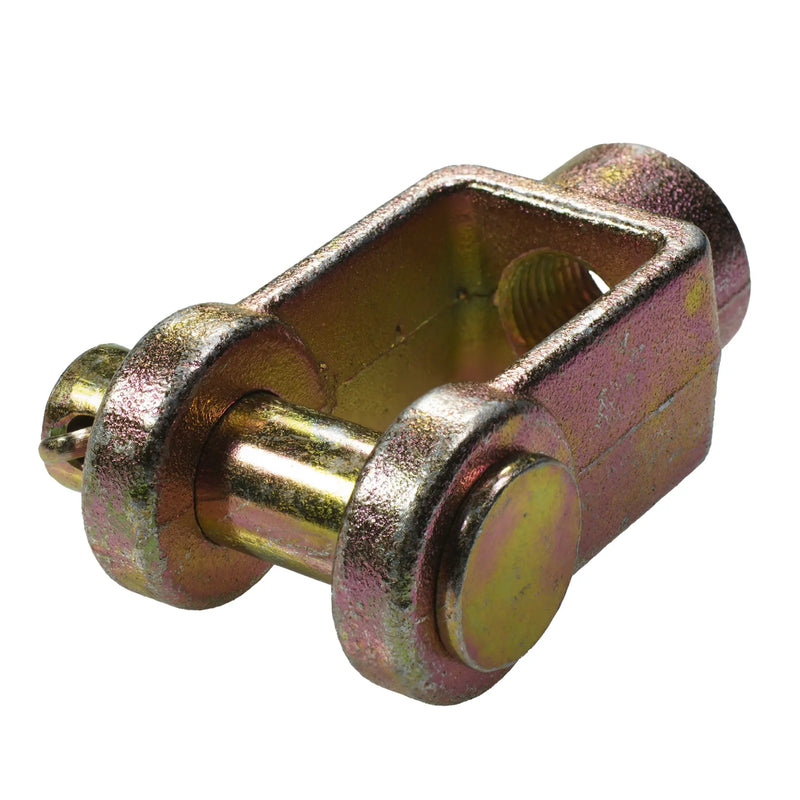

COSTASUR CLEVIS FOR ASSIST CYLINDERS
SKU CFB-93-1-CL12
Ensure the mechanical precision and responsiveness of your actuation system with the Costasur Clevis for Assist Cylinders. Often identified in technical drawings as a yoke, this high-strength component serves as the critical mechanical interface between the pushrod of the assist cylinder and the cam-actuation assembly of "The Cincinnati Brake"
Key Features and Benefits:
• Safety-Critical Performance: This clevis transmits the "working" force from the spring brake chamber to the internal cams. It is vital for maintaining the fail-safe operation of the system, ensuring that spring force can actuate the service brake for positive parking and emergency stops even upon loss of air pressure.
• High-Durability Forged Construction: Engineered to withstand the intense, high-cycle, and high-vibration environment of roller coaster operations, the forged design provides the structural integrity required for heavy-duty industrial use.
• Engineered Precision: This component provides the precise mechanical translation needed for the air cylinders to deliver clamping force to the vehicle fin.
• System Reliability: As a standardized part of the Cincinnati Brake family, this clevis ensures consistent alignment and actuation across the entire brake run.
• Compatibility: This forged clevis is the designated hardware for the following configurations:
• 93" Full Brake
• 68" Short Brake
• 61" and 48" Half Brake configurations
⚠️ IMPORTANT Safety Warning: While the clevis is a replaceable external part, the connected air cylinders contain compressed springs and should NEVER be disassembled due to safety risk.
